When we have connectivity from logical system to logical system is time to configure routing configuration in order to have full connectivity between logical systems.
In this lab sections we will cover several protocols for dynamic routing.

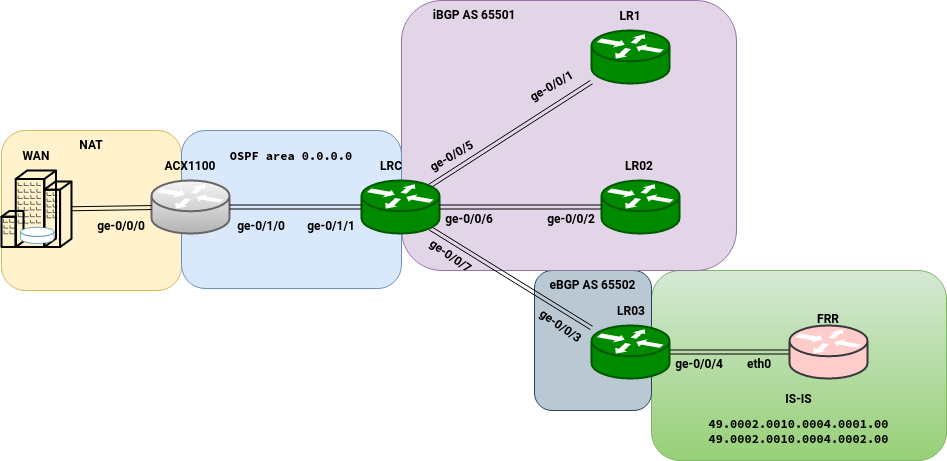

- ACX1100 will provide WAN (i-net/home lab) access to all others via source NAT
- OSPF (acx1100, LRC): exchange routes in area 0.0.0.0
- iBGP (LRC,LR, LR2): LRC will be route reflector for LR1,LR2 and exchange routes in AS65501
- eBGP (LRC,LR3 ): exchange routes between AS65501 and AS65502
- IS-IS (LR3, FRR-arm64): exchange routes in area 49.0002
End goal is all networks to be visible across all logical systems and arm64 sbc regardless the routing protocol, also all „nodes“ must have internet access
